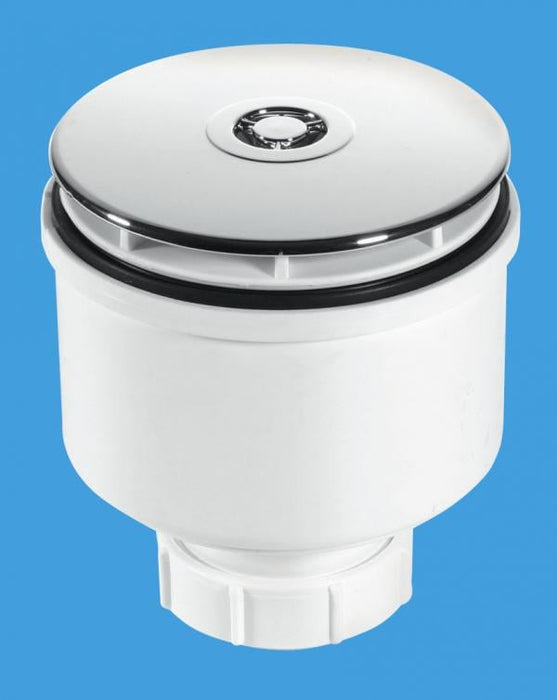

McAlpine 90mm Vertical Shower Trap - ST90WH10-V

McAlpine 90mm Vertical Shower Trap - ST90WH10-V

SKU ST90WH10-V
by McAlpine
£23.99 - £23.99
£23.99
£23.99 - £23.99
£23.99
Availability:
In stock

Delivery

Delivery will be made within 3-5 business days from receipt of order, excluding Bank Holidays.*

Product Details

90mm x 50mm Water Seal Shower Trap with 2" Universal Vertical Outlet with removable 110mm Flange.

  • Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
  • Suitable for shower trays with a 90mm waste hole
  • 50mm Water Seal
  • 2" Universal Vertical Outlet
  • Removable 110mm flange facilitates easy cleaning
  • Flow rate 50 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
  • Overall height 108mm
  • Manufactured in polypropylene
  • 108mm under-tray dimension
  • Traps ST90CP10-V, ST90CB10-V and ST90WH10-V are suitable for tray thickness 0-23mm
  • Traps ST90CPB-P-V and ST90CPB-S-V are suitable for tray thickness 9-13mm
  • Note: Longer flanges are available to suit thicker trays

    • For Product codes ST90CP10-V, ST90CB10-V, and
      ST90WH10-V, additional longer flange code is: STW9030WSTBDY-43MM.
      This flange is suitable for tray thickness of 0-26mm
    • For product code ST90CPB-P-V, additional longer flange code is: P-CPB-ST90-P50-43.
      This flange is suitable for tray thickness of 9-30mm
    • For product code ST90CPB-S-V, additional longer flange code is: P-CPB-ST90-S50-43.
      This flange is suitable for tray thickness of 9-30mm
