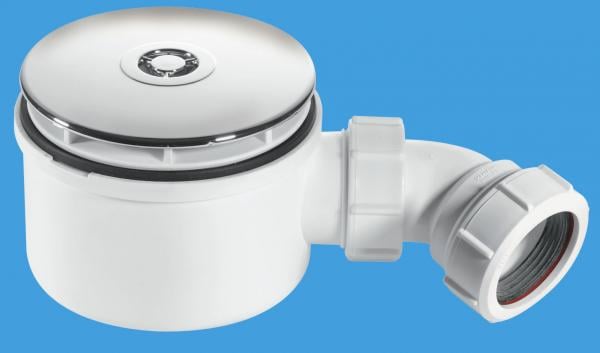

McAlpine 90mm Shallow Shower Trap - 70mm High - ST90MB10-70

McAlpine 90mm Shallow Shower Trap - 70mm High - ST90MB10-70

SKU ST90MB10-70
by McAlpine
£41.99 - £41.99
£41.99
£41.99 - £41.99
£41.99
Availability:
In stock

Delivery

Delivery will be made within 3-5 business days from receipt of order, excluding Bank Holidays.*

Product Details

90mm x 50mm Water Seal Shower Trap with 1½" Outlet

  • Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
  • Suitable for shower trays with a 90mm waste hole
  • 50mm Water Seal
  • 1½" BSP Thread
  • Supplied with 135° Bend - BSP coupling nut x 1½" Universal
  • Removable 110mm flange facilitates easy cleaning
  • Flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
  • Overall height is only 70mm
  • Manufactured in polypropylene
  • Conforms to EN 274-1:2002
  • 70mm under-tray dimension
  • Traps ST90CP10-70, ST90CB10-70 and ST90WH10-70 are suitable for tray thickness 0-23mm
  • Traps ST90CPB-P-70 and ST90CPB-S-70 are suitable for tray thickness 5-30mm
  • Note: Longer flanges are available to suit thicker trays with a tray thickness between 0-26mm.

    • For Product codes ST90CP10-70, ST90CB10-70, ST90WH10-70: additional longer flange code is: STW9030WSTBDY-43MM
    • (NB: There are no longer flanges available for ST90CPB-P-70 or ST90CPB-S-70)

    • McAlpine 90mm Shallow Shower Trap - 70mm High - ST90MB10-70
    McAlpine 90mm Shallow Shower Trap - 70mm High - ST90MB10-70
