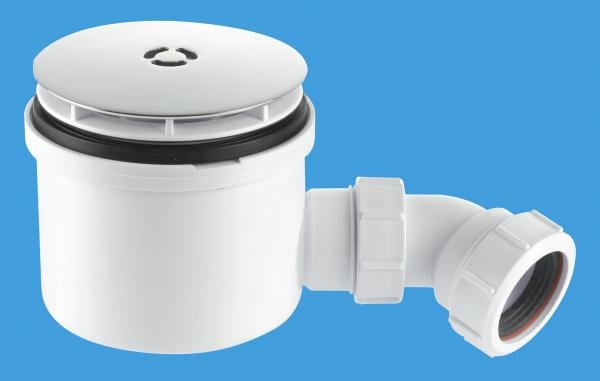

McAlpine 1½" 90mm Hi-Flow Shower Trap - ST90CP10-HP2

McAlpine 1½" 90mm Hi-Flow Shower Trap - ST90CP10-HP2

SKU ST90CP10-HP2
by McAlpine
£25.99 - £25.99
£25.99
£25.99 - £25.99
£25.99
Availability:
In stock

Delivery

Delivery will be made within 3-5 business days from receipt of order, excluding Bank Holidays.*

Product Details

90mm x 50mm Water Seal Shower Trap with 1½" Outlet High-Flow High-Performance Trap with removable 110mm Flange

  • Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass
  • Suitable for shower trays with a 90mm waste hole
  • 50mm Water Seal
  • 1½" BSP Thread
  • Supplied with 135° Bend - BSP coupling nut x 1½" Universal
  • Removable 110mm flange facilitates easy cleaning
  • Flow rate 42 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002
  • Overall height 90mm
  • Manufactured in polypropylene
  • 90mm under-tray dimension
  • Traps ST90CP10-HP2, ST90CB10-HP2 and ST90WH10-HP2 are suitable for tray thickness 4-15mm
  • Traps ST90CPB-P-HP2 and ST90CPB-S-HP2 are suitable for tray thickness 5-14mm
  • Note: Longer flanges are available to suit thicker trays

    • For Product codes ST90CP10-HP2, ST90CB10-HP2, and ST90WH10-HP2, additional longer flange code is:
      STW9050WSTBDY-43MM.
      This flange is suitable for tray thickness of 21-29mm
    • For product code ST90CPB-P-HP2, additional longer flange code
      is: P-CPB-ST90-P50-43.
      This flange is suitable for tray thickness of 21-30mm
    • For product code ST90CPB-S-HP2, additional longer flange code
      is: P-CPB-ST90-S50-43.
      This flange is suitable for tray thickness of 21-30mm
